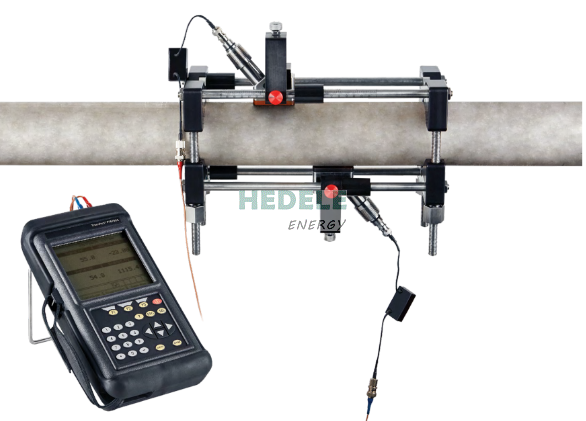

PT878GC

# Product Introduction
The TransPort PT878GC Flowmeter is a versatile, standalone and portable transit-time system equipped with a variety of options and accessories to meet diverse gas flow measurement requirements. Its compact size, lightweight construction, rechargeable battery pack and universal power charger make it an ideal portable flowmeter. It is capable of measuring the flow rate of various types of gases. This device is especially suitable for metering corrosive, toxic, high-purity and sterile gases, and is particularly applicable to scenarios where penetration through pipe walls needs to be avoided. Since no drilling or cutting of pipelines is required, installation costs are significantly reduced. Featuring a non-contact structural design, the flowmeter causes no pressure loss during operation and offers an extremely wide measuring range.


# Product Parameters
## PT878GC Specifications
### Display Functions
- Graphical display of flow rate in numeric or graphical format
- Display of recorded data
- Comprehensive diagnostic parameters


### Clamp-on Ultrasonic Flow Sensor
#### Temperature Range
- Standard: -40°F to 266°F (-40°C to 130°C)
- Optional (overall range): -40°F to 446°F (-40°C to 230°C)


#### Sensor Material
#### Accuracy
Typical ±1% or ±0.002 inch (±0.05 mm)


#### Operating Temperature
Continuous operation up to 100°F (37°C); intermittent operation up to 500°F (260°C) for 10 seconds, followed by 2 minutes of air cooling


### Operation and Performance
#### Pipe Diameter Range
- 0.75 in to 12 in (20 mm to 300 mm) with TransPort PT878GC-01 electronics
- 4 in to 24 in (100 mm to 610 mm) and larger sizes with TransPort PT878GC-02 electronics


#### Flow Accuracy (Velocity)
- For pipes with a diameter of 6 in (150 mm) and below: Typical reading accuracy of ±2% to 5%
- For pipes larger than 6 inches (150 mm): Typical reading accuracy of ±1% to 2%, depending on pipe size and other factors


#### Repeatability
±0.2% to 0.5% of reading


#### Dimensions
Weight: 3 lbs (1.36 kg); Dimensions (Height × Width × Depth): 9.4 in × 5.5 in × 1.5 in (238 mm × 138 mm × 38 mm)


#### Display
240 x 200 pixel backlit LCD graphical display


#### Battery Charger Input
100 to 250 VAC, 50/60 Hz, 0.38 A


#### Storage
Flash memory, field-upgradable


#### Working Temperature
-4°F to 131°F (-20°C to 55°C)


#### Storage Temperature
-40°F to 158°F (-40°C to 70°C)
To maximize battery service life, it is recommended that the storage temperature does not exceed 95°F (35°C) and the storage period does not exceed one month.


#### Standard Input/Output
- One 0/4 to 20 mA current output
- One user-selectable pulse (solid-state, max 5V) or frequency (5 V square wave, 100 - 10000Hz)
- Two 4-20mA analog inputs with switchable power supply for loop-powered temperature or pressure transmitters


# Product Applications
## Applications
The TransPort PT878GC Clamp-on Gas Flowmeter is a complete ultrasonic flow measurement system designed for measuring most gases, including:
- Natural gas
- Compressed air
- Fuel gas
- Corrosive gas
- Toxic gas
- High-purity gas
- Vapor separation gas
