Product Introduction

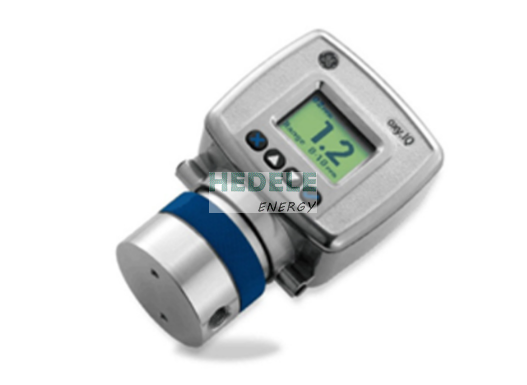

This Oxy.IQ oxygen transmitter is a highly reliable and cost-effective dual coil powered transmitter with a linearized 4-20mA output. It can measure oxygen content in the range of ten ppm and six percentage ranges. All ranges can be selected by users. This compact transmitter utilizes validated sensor technology to accurately measure the oxygen content in various gases, and performs excellently even in hazardous environments.
Product parameters
Oxygen transmitter
Product Introduction:
Oxy.IQ is a highly reliable and cost-effective dual coil power transmitter with linear capabilities
Convert to 4-20mA output. It can measure oxygen in the range of ten ppm and six percentage ranges
Gas content. All ranges can be selected by users. This compact transmitter adopts a verified
The sensor technology of the certificate can accurately measure the oxygen content in various gases, even in
It can also perform well in hazardous environments.
Features:
4-20mA transmitter with dual line and loop power supply
• Monitor with keyboard
For Class 1, Zone 1, and Zone 2 locations, it has an intrinsic safety option and complies with ATEX/IECEX Zone 0 requirements
Non ignition devices at non Div 2 locations
Explosion proof options
Mature Voltaic Fuel Cell O2 Sensor Technology
Users can choose between ppm and oxygen percentage ranges
User friendly and intuitive user interface with diagnostic function
• All digital technology based on microprocessors, reliable operation
• Maintain low, economical, and compact
Sensor malfunction output error
• Sensor lifespan indication
NAMUR error indication
Application fields:
Glove box blowing and leak detection
• Natural gas
• Semiconductor wafer machine
Painting process equipment
• Membrane air separator
• Inert flux gas
• Pure gaseous hydrocarbon stream
• Process monitoring of gaseous monomers
• Heat treatment and photo annealing
Oxygen transmitter
Main technical parameters:
Range options:
PPM sensor:
-0 to 10 ppmv O2 (OX-1 or OX-2 only)
-0 to 20 ppmv O2 (OX-1 or OX-2 only)
-0 to 50 ppmv O2 (OX-1 or OX-2 only)
-0 to 100 ppmv O2
-0 to 200 ppmv O2
-0 to 500 ppmv O2
-0 to 1000 ppmv O2
-0 to 2000 ppmv O2
-0 to 5000 ppmv O2
-0 to 10000 ppmv O2
• Sensor percentage:
-0% to 1% O2
-0% to 2% O2
-0% to 5% O2
-0% to 10% O2
-0% to 25% O2
-0% to 50% O2
Accuracy:
± 1% range of calibration point
± between 0 and 10 pp
