# Product Introduction

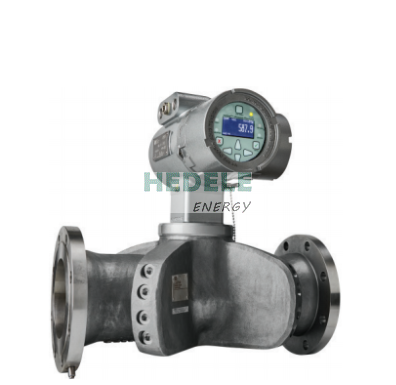

The LCT8 adopts the groundbreaking Sentinel LCT4 design and can be seamlessly integrated into pipelines or processes. When a smaller installation footprint or pressure drop is a consideration, the eight-path design allows for shorter upstream and downstream lengths. Compared with other flow meters, the LCT8 fully embodies the advantages of ultrasonic flow measurement, including:
- No drift and no need for regular calibration
- No pressure drop
- No pipeline restrictions
- No moving parts, no filters or strainers
## True Multi-Viscosity Meter
The LCT8 utilizes a range of proprietary algorithms to mitigate viscosity effects, rendering it immune to viscosity variations. No proving runs or setting adjustments are required when viscosity changes. The meter maintains its accuracy across the entire minimum and maximum viscosity range with only a single calibration curve.
# Product Specifications
## Specifications
### Operation and Performance
**Fluid Type**
Liquid hydrocarbons, crude oil and refined products, and other liquids
**Flow Measurement**
Correlative transit time mode
**Accuracy**
<±0.15% of measured volume at flow rates from 1 to 33 ft/s (0.3 to 10 m/s) (extended ranges available upon request)
**Repeatability**
±0.02%
**Viscosity Range**
0 to 6600 cSt. Consult the factory for higher viscosity values.
**Reynolds Number Range**
> Re 5,000. Consult the factory for lower Reynolds number applicability.
**Process Temperature**
-40 to +140°C (-40 to +248°F)
**Ambient Temperature**
-40 to +60°C (-40 to 140°F)
**Storage Temperature**
-40 to +85°C (-40 to +176°F)
**Power Supply**
- 100 to 240 VAC
- 12 to 32 VDC
**Display**
High-contrast 128 x 64 pixel graphic display with LED backlighting.
**Outputs**
- Two frequency/pulse outputs with DC optical isolation
- Two alarm relays
- One 4/20 mA output
**Inputs**
- Two 4/20 mA and one 100 ohm RTD input for temperature, pressure and density inputs (optional)
- Three 4/20 mA inputs for temperature, pressure and density inputs (optional)
**Digital Interfaces**
- PanaLink via RS232/485/USB
- Modbus RTU over RS232/485
# Product Applications
## Applications
- Pipeline leak detection
- Liquid transfer measurement
- Custody transfer metering
- Critical liquid process applications of all kinds
