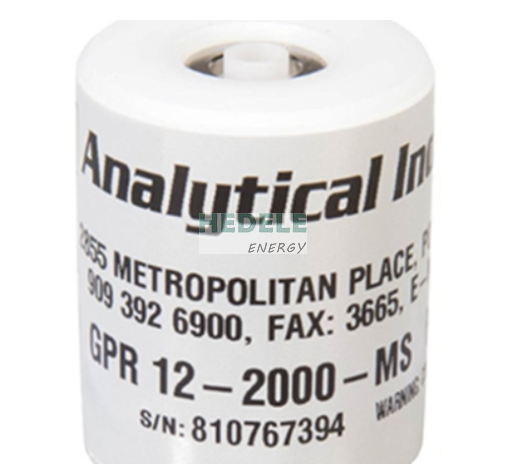

Product Introduction
Advanced electrochemical oxygen sensors have excellent stability and accuracy in strict applications. All% oxygen sensors have undergone the most extensive stability testing, including air output, 30 inch water column pressure testing, and 100% oxygen stability.
Product parameters
specification
measurement range
0-100% O2
Response time 90% 9s
Accuracy at full scale (2)+1%
Accuracy FS exceeds working temperature (3)+5%
Drift (% signal month) (2)<1%
Working temperature 0-45 ° C
Operating pressure constant pressure 5-30 PSIG
Expected lifespan (1) 60 months
Electrical Connection 3 Ring PCB Gold Plating
Storage temperature 0 to 40 ° C
(1) In air at 25 ° C and 1 atm, the expected lifespan is inversely proportional to changes in O2 concentration, temperature, and pressure.
(2) Under normal temperature and pressure conditions, calibration should be carried out as close as possible to the sample conditions. When the oxygen content exceeds 40%, a gas with an oxygen content of 95% -100% should be used for measurement.
(3) After a step change in temperature, the signal output stabilizes.
(4) Suggest 0-40 ° C. Sensors can only be stored intermittently between -10 ° C and 55 ° C.
Product Application
Application:
Oxygen analyzer for electrochemical principles, oxygen cell replacement
