Product Introduction
This innovative sensor design inherits many characteristics of traditional electrochemical oxygen sensors, but has higher sensitivity, stability, and high signal-to-noise ratio, with a service life of 24 months, providing an effective analyzer solution for measuring low concentration PPM oxygen analysis.
Product parameters
Product Features:
Wide measurement range: The measurement range is from 0-10ppm to 0-25% 0, which meets the monitoring of oxygen content from low concentration to high concentration. High precision: The accuracy is better than 2% of the measurement range, ensuring the accuracy of the measurement results.
Long life sensor: The sensor has a lifespan of 24 months (under normal circumstances), reducing maintenance costs. Standard output: 4-20mA output, easy to integrate with various control systems. Low power consumption: 18-24V circuit power supply, suitable for various power environments.
XLT sensor options: XLT sensors can be used for COz background gas oxygen monitoring, enhancing the device's applicability in complex gas environments. Application scenarios:
Glove box: Especially suitable for measuring the oxygen content inside the glove box, ranging from air level (21% oxygen content) to ppm level (0-10 ppm oxygen content), easy to install, meeting the needs of glove box operators.
Nitrogen generator; Used to monitor the oxygen content in the nitrogen generated by the nitrogen generator to ensure nitrogen purity. Technical specifications: GPR-1500 GB GPR-2500 GB
GPR-1500 GB range: 0-100, 0-100, 0-1000ppm, 0-1%, 0-25% (calibration only) GPR-2500GB range: 0-1%, 0-5%, 0-10%, 0-25%
Product Application
Application:

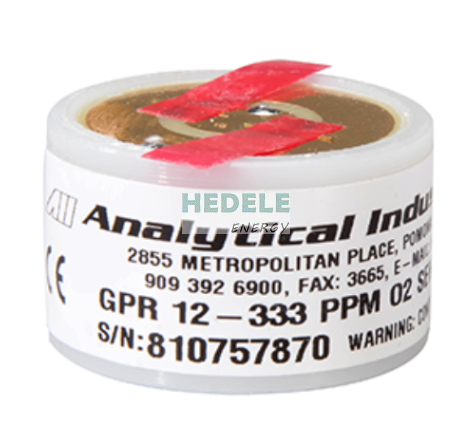

Replace the American AII oxygen analyzer electrochemical principle instrument
For example: AII GPR-1500 GB/2500 GB
