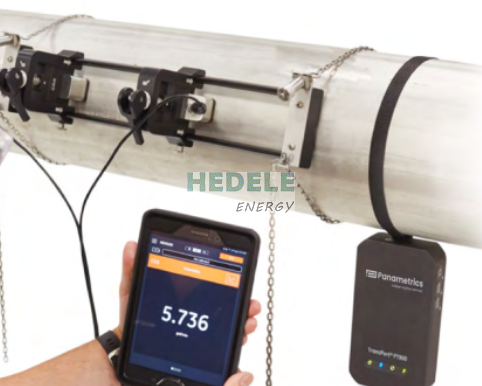

TransPort PT900

# Product Introduction
The TransPort PT900 is the latest generation of clamp-on portable liquid ultrasonic flowmeter from Panametrics' ultrasonic instrument product line. It not only inherits the rugged durability and outstanding performance of the previous-generation TransPort PT878, but also further upgrades to an entirely new level of intuitive and user-friendly functions tailored to modern customer needs.


# Product Specifications
The TransPort PT900 system includes:
- Transducer Clamps
- Flow Transmitter (Electronics)
- Carrying Case
- Accessories


Available Options Include:
- Wireless Tablet
- Rechargeable Battery Pack or Spare Battery
- Baker Hughes PocketMike Thickness Gauge
- Energy Metering Kit


# Operation and Performance
## Fluid Type
Liquids: Acoustically conductive liquids, including most pure liquids and many liquids mixed with a small amount of solids or air bubbles.


## Flow Measurement
Patented Correlation Transit-Time™ mode


## Pipe Size
Standard: 0.5 to 24 inches (15 to 600 millimeters)
Optional: Up to 300 inches (7500 millimeters), available upon customer request


## Pipe Wall Thickness
Maximum 3 inches (76.2 millimeters)


## Pipe Material
All metals and most plastics; applicable to concrete, composite materials, as well as highly corrosive or lined pipelines.


## Accuracy
±1% of reading accuracy (pipe size of 2 inches/50 millimeters or larger)
±2% of reading accuracy (pipe size from 0.5 inches/15 millimeters to less than 2 inches/50 millimeters)
Installation assumes a fully flooded pipe and symmetrical flow profile (typically requiring 10 pipe diameters of straight pipe upstream and 5 pipe diameters downstream). Final installation accuracy is determined by multiple factors, including fluid medium, temperature range, pipe concentricity and other parameters.


## Repeatability
±0.2% of reading


## Flow Velocity Range (Bi-directional)
±0.1 to 40 ft/s (±0.03 to 12.19 m/s)


## Response Time
Up to 2 Hz


## Measured Parameters
Flow velocity, volume, mass, energy, totalization


## Channels
1 or 2 channels


## Flow Transmitter
Enclosure Rating: IP65


## Specifications
- Weight: 3 lbs (1.4 kg)
- Dimensions (Height x Width x Depth): 7.9 x 4.3 x 1.5 inches (200 x 109 x 38 millimeters)
- Mounting: Pipe wrap strap or magnetic clamp


## Analog Input
4-20 mA (2 channels)


## Analog Output
4-20 mA (1 channel)


## Digital Output
Pulse (Totalizer), Frequency, Alarm (1 channel)


## Digital Communication
- Modbus via RS485 port
- Bluetooth® Wireless
- Micro-USB Port


# Product Applications
## Application Fields of TransPort PT900
- Suitable for pipelines of various diameters and materials, including lined pipelines
- Applicable to almost all industries requiring temporary or on-site fluid flow measurement
- Compatible with a wide range of fluid media, including drinking water, wastewater, cooling water, hot water, ultra-pure water and other liquids such as water/glycol mixtures, crude oil, refined hydrocarbon liquids, chemicals and beverages
