Product Introduction

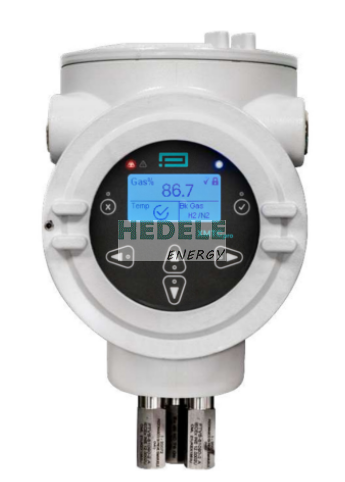

The compact, weather resistant, explosion-proof, and flameproof XMO2pro oxygen analyzer is specifically designed for on-site installation at process measurement points, reducing sample processing requirements while ensuring timely response of samples. XMO2Pro does not require consumables, has no moving parts, and is insensitive to vibration
Sense, therefore possessing excellent long-term reliability.
Product parameters
oxygen analyzer
Features:
Accurate measurement of 0.01% to 100% oxygen in gases
Compact design that can be economically and efficiently integrated into process control processes
Explosion proof and explosion-proof certification, with wind and rain protection, allowing sensors to be remotely installed at measurement points
Unique temperature controlled dual chamber design, resistant to pollution and flow fluctuations
Compact and sturdy sensor design with no moving parts, providing long-term reliable and stable operation
High contrast display screen, large magnetic buttons, easy to operate under different environmental conditions
• Intuitive user interface, easy and flexible to use
MODBUS communication port provides extended information with configurable options
• Minimal on-site/user control and maintenance
Application fields:
• Inert/cover liquid storage tanks
• Reactor feed gas
• Centrifugal gas
• Catalytic regeneration
• Solvent recovery
• Landfill/Biogas Treatment
• Gas in sewage digestion tank
• Oxygen purity
• Reaction optimization
oxygen analyzer
Main technical parameters:
Accuracy:
• ±1% of span
• ±2% of span for 0 to 1% range
Range:
• 0% to 1%
• 0% to 2%
• 0% to 5%
• 0% to 10%
• 0% to 21%
• 0% to 25%
• 0% to 50%
• 0% to 100
• 80% to 100
• 90% to 100
Sample gas flow rate:
• Nominal: 500 cc/min (1.0 SCFH)
• Range: 50–1000 cc/min (0.1–2.0 SCFH)
• Max: 1250 cc/min (2.7 SCFH)
Analog output:
4-20 mA field-programmable
Digital output:
Modbus RS232/RS485
Power Supply:
24 VDC ±4 VDC, 2.5 A
Operating pressure:
• Close to atmospheric
• Max 2 barg (29 psig)
Overall dimensions:
• Wp. (H x D x W): 228 x 178 x 142mm (9 x 7 x 6in)
• Ex-pro
