Product Introduction
OXy.IQ constant explosion-proof oxygen analyzer is a highly reliable and cost-effective dual coil power transmitter with a linearized 4-20mA output. It can measure oxygen content in the range of 500ppm and three percentage ranges. All ranges can be selected by users. This compact transmitter utilizes validated sensor technology to accurately measure the oxygen content in various gases, and performs excellently even in hazardous environments.
Product Parameters

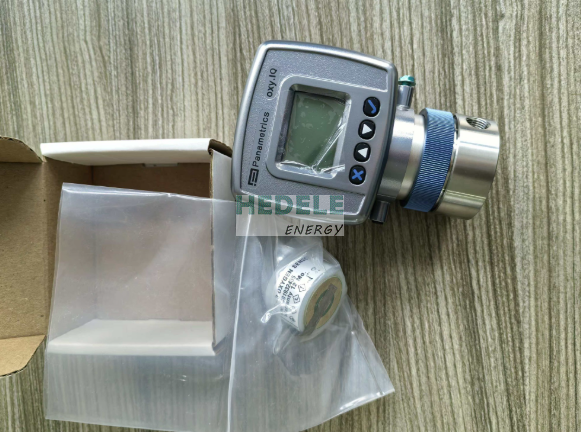

OXy.IQ constant explosion-proof oxygen analyzer
Features:
4-20mA transmitter with dual line and loop power supply
• Monitor with keyboard
For Class 1, Zone 1, and Zone 2 locations, it has an intrinsic safety option and complies with ATEX/IECEX Zone 0 requirements
Non ignition devices at non Div 2 locations
Explosion proof options
Mature Voltaic Fuel Cell O2 Sensor Technology
Users can choose between ppm and oxygen percentage ranges
User friendly and intuitive user interface with diagnostic function
• All digital technology based on microprocessors, reliable operation
• Maintain low, economical, and compact
Sensor malfunction output error
• Sensor lifespan indication
NAMUR error indication
Application fields:
Glove box blowing and leak detection
• Natural gas
• Semiconductor wafer machine
Painting process equipment
• Membrane air separator
• Inert flux gas
• Pure gaseous hydrocarbon stream
• Process monitoring of gaseous monomers
• Heat treatment and photo annealing
OXy.IQ constant explosion-proof oxygen analyzer
Main technical parameters:
Range options:
PPM sensor:
-0 to 500 ppmv O2
-0 to 1000 ppmv O2
-0 to 2000 ppmv O2
-0 to 5000 ppmv O2
-0 to 10000 ppmv O2
• Sensor percentage:
-0% to 10% O2
-0% to 25% O2
-0% to 50% O2
Accuracy:
± 1% range of calibration point
± 2% range of calibration points within the range of 0 to 10 ppmv (limited to OX-1 or OX-2)
Power supply:
24 to 28 VDC, 50 mA
Sample pressure:
Emissions to the atmosphere during operation and calibration
The sample operating pressure is 10 PSI (0.69 barg) (except when using an ambient air adapter for the sample manifold)
200 PSI (13.78 barg) sample manifold burst pressure (all bases except for ISO-KF-40 flange adapter)
ISO-KF-40 is suitable for vacuum flanges and does not require positive sample pressure.
Process connection:
1/8 inch NPT inlet and outlet oxygen content IQ specification
Size:
4.10 x 2.75 x 2.05 inches (104.1 x 69.9 x 52.1 millimeters)
