MTS6 Dew Point Moisture Analyzer

# Product Introduction

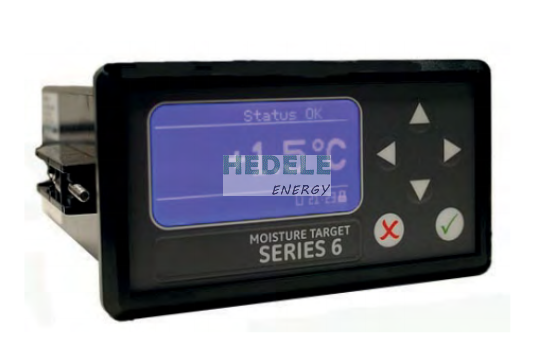

# MTS6 Dew Point Moisture Analyzer
## Functions
• Low-cost single-channel hygrometer for OEM applications
• Compatible with M-series humidity probes or VeriDri humidity transmitters
• NEMA 4 weatherproof front-panel display/keypad with membrane
• Built-in isolated current or voltage analog output
• Micro SD card for data logging with a maximum capacity of 32GB
• Available in panel mount and board-level configurations
• Fail-safe fault alarm relay
• Two Form C measurement alarm relays
• Upgraded version of MTS5 with adapter panel


## Real-Time Humidity Measurement
The Moisture Target Series 6 is an economical single-channel aluminum oxide hygrometer in the Moisture Series analyzer lineup. It is suitable for OEM applications requiring low-cost, accurate and real-time humidity measurement.


### Enhance Performance of OEM Products
By enabling closed-loop humidity control, the Moisture Target Series 6 can significantly improve the performance of OEM products. For instance, in regenerative dryer applications, the unit activates desiccant bed regeneration based on actual demand instead of open-loop timed cycles, effectively boosting operational efficiency.


## Compatibility with M-Series Probes and VeriDri Dew Point Transmitters
The Moisture Target Series 6 adopts M-series aluminum oxide humidity sensor probes or VeriDri humidity transmitters. Both M-series probes and VeriDri transmitters are rugged, high-accuracy true relative humidity sensors with calibration traceable to the National Institute of Standards and Technology (NIST). With outstanding dynamic range, response speed and calibration stability, aluminum oxide sensors have remained the benchmark for performance and cost-effectiveness in industrial humidity measurement for over forty years.


## Product Parameters
### MTS6 Dew Point Moisture Analyzer
#### Humidity Measurement
##### Sensor Type
Aluminum oxide thin film


##### Humidity Probe Compatibility
Compatible with all Baker Hughes M-series aluminum oxide humidity probes and VeriDri transmitters


##### Dew Point/Frost Point Temperature
- Overall operating temperature range: 140°F to -166°F (60°C to -110°C)
- Standard temperature range: 68°F to -112°F (20°C to -80°C), with data available down to -166°F (–110°C)
- Temperature range: 140°F to -85°F (60°C to -80°C), with data extendable to -166°F (-110°C)


- VeriDri Product Series Coverage:
  - –110°C to 20°C
  - –110°C to –50°C
  - –90°C to 10°C
  - –80°C to –30°C
  - –80°C to 20°C
  - –30°C to 20°C
  - –130°F to 70°F
  - –130°F to –40°F
  - –40°F to 70°F
  - –50°F to 50°F
  - –100°F to 0°F


##### Calibration Accuracy at 77°F (25°C)
- ±3.6°F (±2°C) from -85°F to 50°F (-65°C to 10°C)
- ±5.4°F (±3°C) from -112°F to -86°F (-80°C to -66°C)


##### Repeatability
- Dew point/frost point: ±0.9°F (±0.5°C) within the range of –85°F to 50°F (–65°C to 10°C)
- Dew point/frost point: ±1.8°F (±1.0°C) within the range of –112°F to –86°F (–80°C to –66°C)


##### Analog Output
Single internal isolated recorder output for dew point, optically isolated internally with 10-bit (0.1%) resolution


##### Standard Switchable Outputs
- 0 to 2 V, minimum load resistance: 10kΩ
- 0 to 20 mA, maximum series resistance: 400Ω
- 4 to 20 mA, maximum series resistance: 400Ω
- User programmable within the range of the instrument and corresponding sensor/transmitter


##### Alarm Relays
- One fail-safe fault relay
- Two standard Form C SPDT relays, rated 3 A, 250 VAC/30 VDC
- Configurable to any level within the instrument range; programmable via front panel


##### Alarm Setpoint Repeatability
±0.2°F (±0.1°C) dew point


##### Data Logger
32GB capacity with MicroSD card; 2GB card included


##### Display
128 x 64 matrix LCD display


##### Display Functions
Dew point temperature for diagnostics (displayed in °F, °C or sensor signal value)


##### Power Requirements
Universal power supply: 100-240 VAC @ 50-60 Hz, or nominal 24 VDC


##### Temperature
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
- Storage temperature: -40°C to 158°F (-40°C to 70°C)


##### Warm-Up Time
Achieves specified accuracy within three minutes


## Product Applications
### Applications
This single-channel analyzer measures humidity in compressed air and gases. Designed for permanent installation, it is ideal for OEM applications of air/gas dryers and shall be used with M-series humidity probes or VeriDri humidity transmitters.


- Regenerative dry air or gas dryers
- Plastic drying applications before injection molding
- Medical air dryers
- Glove box monitoring
