# Product Introduction

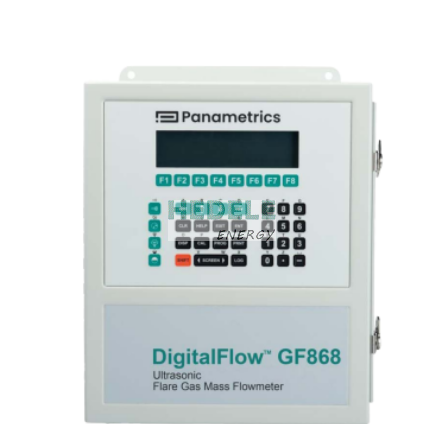

The DigitalFlow GF868 Ultrasonic Flow Meter adopts patented Correlation Transit-Time™ technology, digital signal processing, and precise molecular weight calculation methods. Leveraging the inherent reliability advantages of ultrasonic flow measurement — maintenance-free operation, high accuracy, fast response, and wide-range measurement capability — the DigitalFlow GF868 flow meter is undoubtedly the optimal choice for flare gas applications. Compared with other flare gas flow measurement methods, the correlation transit-time method offers distinct advantages and can address a variety of complex measurement challenges. Typically, the gas in flare stacks, gas headers or branch pipes is a mixture of components from different sources, and the flow rate in flare systems may be unstable and even bidirectional. Pulsating pressure, fluctuations in composition and temperature, harsh operating environments, and wide flow rate ranges further add to measurement complexity. The GF868 is engineered to deliver outstanding performance under such demanding conditions.
# Product Parameters
## Product Specifications
### Flow Measurement Range
**Standard Range**
-328 to 328 ft/s (-100 to 100 m/s) – Bidirectional
**Extended Range**
1 to 394 ft/s (0.03 to 120 m/s) – Non-bidirectional
### Accuracy
Contact sales for specific data
### Operating Temperature
-4°F to 131°F (-20°C to 55°C)
### Storage Temperature
-67°F to 167°F (-55°C to 75°C)
### Standard Input
Two isolated 0/4 to 20 mA inputs (121 ohms) supporting 24VDC loop-powered devices
### Digital Interface
- Standard: RS232
- Optional: RS485 (Multi-drop)
- Optional: HART® 7 Protocol
- Optional: Modbus® RS485 or TCP/IP
- Optional: Ethernet TCP/IP
- Optional: OPC Server
### Display Functions
- Graphic display presents flow rate in numerical or graphical format
- Displays logged data and diagnostic information in compliance with European standards
# Product Applications
## Applications
The DigitalFlow GF868 Flow Meter is a complete ultrasonic flow measurement system designed for:
- Flare Gas
- Tracking or preventing leakage losses through positive material identification
- Total throughput accounting for raw material plants
- Reducing steam and fuel consumption costs via proportional control
- Saving energy by eliminating unnecessary combustion
- Compliance with governmental pollution control regulations
- Exhaust Gas
- Hydrocarbon Gas
- Biogas
- Digester Gas
