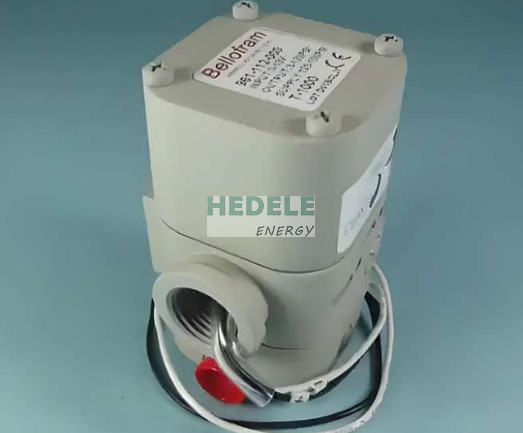

T-1000 961-112-000

# Product Introduction
The T1000 converter is an electro-pneumatic conversion device that converts analog electrical signals into proportionally output pneumatic pressure signals. Its supply air pressure ranges from 1.27 Bar to 7 Bar. The analog electrical signals can be mA current signals or 0–1 VDC voltage signals.


Feature 1: Equipped with a pneumatic flow amplifier in its design, this product achieves a flow rate of 12 SCFM (20.16 m³/hr). The permissible supply air pressure ranges from the minimum required output pressure plus 0.21 Bar up to a maximum of 7 Bar.


# Product Specifications
Type 1000 Series Electro-Pneumatic Converters
## Features
- Adopts a pneumatic flow amplifier design, delivering a flow rate of 20.16 m³/hr
- Permissible supply air pressure: from the minimum required output pressure plus 0.21 Bar to a maximum of 7 Bar
- Convenient external zero adjustment and calibration
- Compact structure with small dimensions and light weight
- Minimal impact from fluctuations in supply air pressure
- Mountable at any angle
- Supports reverse control
- Low air consumption


## Introduction
### Extended T1000 Series
The extended T1000 series delivers a flow rate of 40.32 m³/hr at an output pressure of 10.19 Bar. This product features a wide adjustment range, covering output pressures from approximately 0.212–46 Bar to 0.21–10.19 Bar. The maximum allowable supply air source pressure is 10.4 BAR, with an air flow capacity of 38 m³/hr. T1000 I/P and E/P converters offer far higher efficiency than conventional converters paired with amplifiers and pilot valves.


### Fast Exhaust T1000
Building on the proven precision, reliability and structural design of the standard T1000, we have developed the fast exhaust T1000 converter. This unit rapidly exhausts back pressure without residual backpressure buildup. Its fast exhaust capability makes it ideal for applications requiring rapid cylinder retraction, pneumatic lifting and other scenarios demanding quick air discharge. Maximum input pressure: 7 BAR; output pressure ranges: 0.07–1.2 BAR and 0.42–2.11 BAR; exhaust flow rate: 11.76 m³/hr.


### Partial Pressure Range Adjustment for Applications
Models with 4–20 mA input and 0.21–0.63 BAR output can be reconfigured for partial pressure output ranges of either 0.21–0.63 BAR or 0.63–1.05 BAR.


### Mounting
The T1000 converter can be installed at any position via pipe connection, panel mounting or bracket mounting. Zero recalibration is required if the mounting angle is non-vertical. For maximum output pressure stability, the T1500 must be mounted vertically with no vibration or with vibration isolation along the X and Z axes.


### Reverse Control
All T1000 converters are factory-set for forward control. Reverse control requires signal conversion and simultaneous calibration of the positive and negative poles of the signal lead wires.
