# Product Introduction

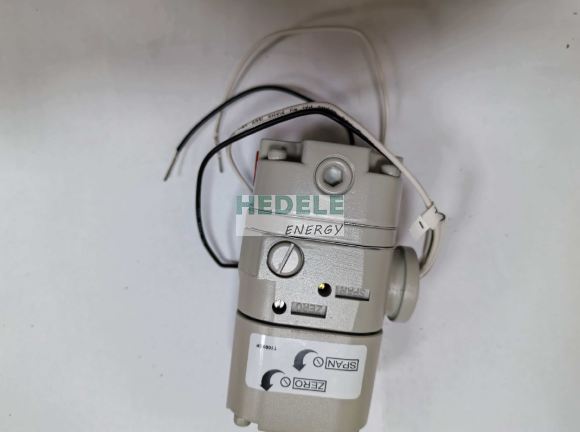

The T1000 transducer is an electro-pneumatic conversion device that converts analog electrical signals into proportionally output pneumatic pressure signals. Its supply air pressure ranges from 1.27 Bar to 7 Bar. The analog electrical signals can be mA current signals or 0–1 VDC voltage signals.
Feature 1: Equipped with a pneumatic flow amplifier in its design, this product achieves a flow rate of up to 12 SCFM (20.16 m³/hr). The allowable supply air pressure ranges from the minimum required output pressure plus 0.21 Bar up to a maximum of 7 Bar.
# Product Specifications
Type 1000 Series Electro-Pneumatic Transducers
## Features
- Integrated pneumatic flow amplifier design delivers a maximum flow rate of 20.16 m³/hr.
- Allowable supply air pressure: minimum required output pressure plus 0.21 Bar to a maximum of 7 Bar.
- Convenient external zero adjustment and calibration.
- Compact structure with small dimensions and light weight.
- Minimal susceptibility to fluctuations in supply air pressure.
- Mountable at any angle.
- Capable of reverse control.
- Low air consumption.
## Description
### Extended T1000 Series
The extended T1000 series delivers a flow rate of up to 40.32 m³/hr at an output pressure of 10.19 Bar. This model features a wide adjustment range, supporting output pressures from approximately 0.212–4.6 Bar to 0.21–10.19 Bar. The maximum allowable supply air source pressure is 10.4 BAR, with an air flow capacity of 38 m³/hr. T1000 I/P and E/P transducers boast far higher efficiency than conventional transducers paired with external amplifiers and pilot valves.
### Fast Exhaust T1000
Drawing on the proven accuracy, reliability and structural design of the standard T1000, we developed the fast exhaust T1000 transducer. This unit rapidly bleeds back pressure without generating backpressure. Its fast exhaust characteristic makes it ideal for applications requiring fast cylinder retraction, pneumatic lifting, and other scenarios demanding rapid gas discharge. Maximum input pressure: 7 BAR; output pressure ranges: 0.07 BAR–1.2 BAR and 0.42–2.11 BAR; exhaust flow rate: 11.76 m³/hr.
### Partial Pressure Range Adjustment for Applications
Models with a 4–20 mA input and 0.21–0.63 BAR output pressure support reconfiguration of their operating range to either 0.21–0.63 BAR or 0.63–1.05 BAR for partial pressure range operation.
### Mounting
The T1000 transducer can be installed anywhere via pipe connection, panel mounting or bracket mounting. Zero recalibration is required if the unit is mounted at a non-vertical angle. For maximum output pressure stability, the T1500 must be installed vertically, free of vibration or with vibration isolation along the X and Z axes.
### Reverse Control
All T1000 transducers are factory-set for forward control. Reverse control requires signal conversion and simultaneous calibration of the positive and negative poles of the lead wires.
