# Product Introduction

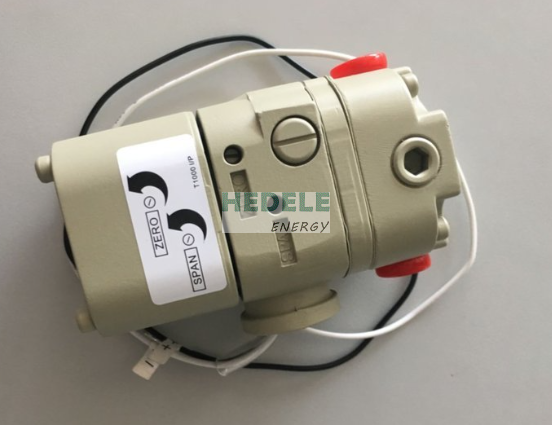

The T1000 converter is an electro-pneumatic conversion device that converts analog electrical signals into proportionally output pneumatic pressure signals. Its inlet pressure ranges from 1.27 Bar to 7 Bar. The analog electrical signals can be mA current signals or 0–1 VDC voltage signals.
Feature 1: Equipped with a pneumatic flow amplifier in its design, this product achieves a flow rate of 12 SCFM (20.16 m³/hr). The permissible inlet pressure range spans from the minimum required output pressure plus 0.21 Bar up to a maximum of 7 Bar.


# Product Specifications
Type 1000 Series Electro-Pneumatic Converters
## Features
- Designed with a pneumatic flow amplifier, delivering a flow rate of 20.16 m³/hr
- Permissible inlet pressure range: minimum required output pressure plus 0.21 Bar to a maximum of 7 Bar
- Convenient external zero adjustment and calibration
- Compact structure with small dimensions and light weight
- Low susceptibility to fluctuations in inlet pressure
- Mountable at any angle
- Supports reverse control
- Low air consumption


## Description
### Extended T1000 Series
The extended T1000 series delivers a flow rate of 40.32 m³/hr at an output pressure of 10.19 Bar. Featuring a wide adjustment range, this model accommodates output pressures ranging from approximately 0.212–46 Bar to 0.21–10.19 Bar, with a maximum allowable supply inlet pressure of 10.4 BAR and an air flow capacity of 38 m³/hr. T1000 I/P and E/P converters offer far higher efficiency than conventional converters paired with amplifiers and pilot valves.


### Fast Exhaust T1000
Building on the proven precision, reliability and structural design of the standard T1000, the fast exhaust T1000 converter rapidly discharges backpressure without residual backpressure buildup. This fast exhaust capability makes it ideal for rapid cylinder retraction, pneumatic lifting and other applications requiring quick gas venting. It has a maximum inlet pressure of 7 BAR, an output pressure range of 0.07–1.2 BAR to 0.42–2.11 BAR, and an exhaust flow rate of 11.76 m³/hr.


### Partial Pressure Range Adjustment for Applications
Models accepting 4–20 mA input current with a default 0.21–0.63 BAR output pressure can be reconfigured to deliver either 0.21–0.63 BAR or 0.63–1.05 BAR output pressure for partial range operation.


### Mounting
The T1000 converter can be installed anywhere via pipe connection, panel mounting or bracket mounting. Zero recalibration is required if mounted at a non-vertical angle. For maximum output pressure stability, the T1500 must be installed vertically with no vibration, or vibration isolation implemented along the X and Z axes.


### Reverse Control
All T1000 converters are factory-configured for forward control. Reverse control functionality requires signal inversion and simultaneous calibration of the positive and negative poles of the lead wires.
