# Product Introduction

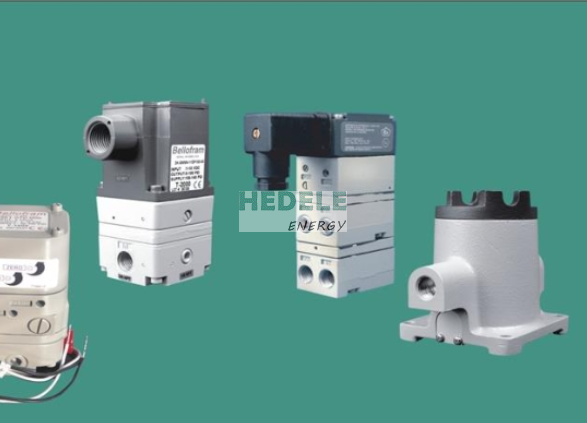

The T1000 Transducer is an electro-pneumatic conversion device that converts analog electrical signals into proportionally output pneumatic pressure signals. Its supply air pressure ranges from 1.27 Bar to 7 Bar. The analog electrical signals can be mA current signals or 0–1 VDC voltage signals.
Feature 1: Equipped with a pneumatic flow amplifier in its design, this product achieves a flow rate of up to 12 SCFM (20.16 m³/hr). The allowable supply air pressure ranges from the minimum required output pressure plus 0.21 Bar to a maximum of 7 Bar.
# Product Parameters
Marsh Bellofram is an American enterprise specializing in the manufacture of pneumatic products including electro-pneumatic transducers, pressure regulators, pressure gauges and rubber diaphragms. The precision of products manufactured by Marsh Bellofram is unmatched by other manufacturers worldwide.
For a long time, friction and leakage issues arising from conventional sealing forms such as O-rings, cup seals and metal bellows have been prevalent in machinery, instrumentation, automotive transportation and other industries, and these problems became increasingly prominent in the 1950s. To address this issue, Bellofram launched a five-year development program aimed at developing Rolling Seal products that can operate under extremely wide ranges of high temperature, pressure and travel stroke while featuring minimal friction and leakage. After five years of persistent efforts, Bellofram established a complete product line of rolling seal diaphragms to meet the demands of manufacturing customers across various sectors.
## Pressure Regulator Series
- Superior regulating performance
- Robust and corrosion-resistant construction
- Excellent stability and repeatability
- Self-relieving capability
- Low pressure drop at high flow rates
- Automatic drain function with optional filter
- Multiple mounting options
## Electro-Pneumatic Transducer Series
- Built-in flow amplifier
- Reversible control available
- Low air consumption
- Mountable at any angle
- Wide supply pressure range
- High sensitivity for low-pressure control
- External zero and span adjustment devices for easy operation
- Thermistor integrated in the circuit for temperature compensation
## Pressure Gauge Series
- Compact size and lightweight
- Interchangeable modular design
- Cold-drawn steel with rust-proof pretreatment and black enamel coating
- High precision with diverse mounting solutions
- Adaptable to extremely harsh operating environments
- Vibration and corrosion resistant
- Cost-effective
## TCP Thermocouple Series
- Suitable for various industrial sites with high pressure and high temperature conditions
- Capable of withstanding temperatures up to 2100 ℉ (1149 ℃) and above; standard industrial color coding for rapid identification
- Equipped with durable, sealed transmitters
- Fitted with argon chambers
- Normally installed via pressure fittings
- Rated for pressures up to 60,000 PSI (4138 BAR)
## Cylinder Series
- Low friction
- Long service life
- Sensitive response with minor pressure variation
- Low actuation pressure and breakaway force
- Wide operating temperature range
- Neoprene diaphragms rated for -40 ℉ to 225 ℉
# Typical Application Cases
Sinopec
CNOOC
Guilin Rubber Design Institute
Valve Actuators
Pump Actuators
Valve Positioners
Relay Devices
Clutch and Brake Assemblies
Controllers
Cylinders
Tire Rubber Vulcanizer Manufacturers
