# Product Introduction

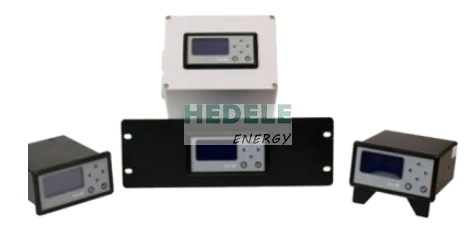

This Panametrics dew point moisture analyzer is a single-channel analyzer designed to measure moisture content in process gases. Engineered specifically for industrial environments, the device is compatible with IQ.probe and M-series moisture probes.
# Product Parameters
## Dew Point Moisture Analyzer
### Features:
- Available in rack, bench, panel and wall-mount configurations
- NEMA 4 weatherproof front panel display/keypad
- Compatible with M-series or IQ.probe moisture probes
- Displays dew point/frost point moisture content and ppmv values
- Built-in isolated current or voltage analog output
- Fail-safe fault alarm relay
- Two measurement alarm relays
### Application Fields:
- Industrial Gases
- Furnace Gas / Heat Treatment
- Power Generation
- Air Dryers
- Pharmaceutical Industry
- Aerospace
## Dew Point Moisture Analyzer
### Main Technical Parameters:
#### Humidity Measurement
##### Sensor Type:
Aluminum Oxide Thin Film
##### Moisture Probe Compatibility:
Compatible with all Panametrics M-series aluminum oxide moisture probes and IQ.probe
##### Measuring Range:
- Standard: 10 to -80°C (50 to -112°F), extrapolated range 20 to -110°C (68 to -166°F)
- Low Temperature Range: -110° to -50°C (-166° to -58°F)
- High Range Data: -80° to 60°C (-112° to 140°F)
##### Calibration Accuracy at 77°F (25°C):
- ±3.6°F (±2°C) above -148°F (-100°C)
- ±5.4°F (±3°C) below -148°F (-100°C)
##### Repeatability:
- ±0.4°F (±0.2°C) above -148°F (-100°C)
- ±0.9°F (±0.5°C) below -148°F (-100°C)
##### Display:
128 x 64 Matrix LCD
##### Display Functions:
Dew point temperature in °F or °C, ppmv, constant pressure input, or sensor signal for diagnostic purposes
##### Power Requirements:
Universal Power Supply: 100-240 VAC @ 50-60 Hz, or nominal 24 VDC
##### Configurations:
- Panel Mount (Front panel meets Type 4 and IP66 standards)
- 9.5-inch Half Rack Bench Mount
- Type 4 and IP66 Wall Mount
# Product Applications
### Application Fields:
- Industrial Gases
- Furnace Gas / Heat Treatment
- Power Generation
- Air Dryers
- Pharmaceutical Industry
- Aerospace
