# Product Introduction
APX's advanced background gas compensation measures not only the thermal conductivity of gases but also their specific heat and viscosity. By measuring these physical properties, APX can better distinguish background gases with different paramagnetism. Traditional dumbbell-type paramagnetic oxygen analyzers cannot automatically compensate for the diamagnetic effects caused by changes in background gases, making APX stand out with obvious advantages. Therefore, APX can deliver more accurate measurements for applications involving background gases with various known or unknown components.
# Product Parameters

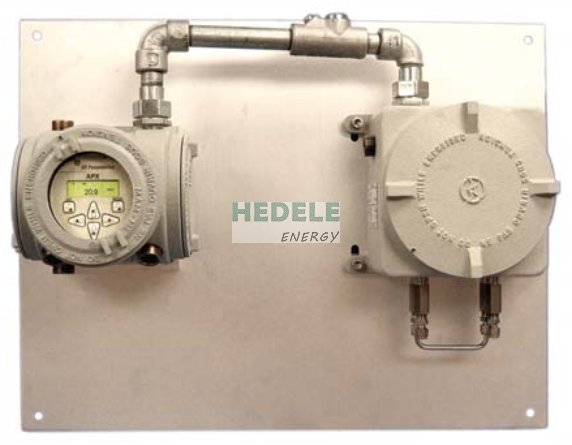

## GE APX Paramagnetic Oxygen Analyzer (USA)
### Features
- Advanced background gas compensation, suitable for a variety of mixed gases
- Infrared keyboard, enabling easy operation through glass in hazardous areas
- Designed for use in hazardous locations
- Waterproof performance
- No moving parts
- AC power supply
- Excellent calibration stability
- Calibrated with nitrogen, applicable in any background gas environment
### Technical Specifications
#### Selectable Ranges
APX provides one channel of 4 ~ 20mA analog output, which fully corresponds to oxygen concentration with internal background gas and pressure compensation. Multiple measuring ranges are available for selection.
#### Accuracy
- ±0.15% O₂ (typical calibrated gas)
- ±0.25% O₂ (other mixed gases)
#### Repeatability
±0.1% O₂
#### Measurement Resolution
0.01mA/0.1% O₂
#### Stability
±0.05% per month
#### Typical Measuring Ranges
- 0 ~ 2%
- 0 ~ 5%
- 0 ~ 10%
- 0 ~ 21%
- 0 ~ 25%
#### Operating Temperature
- Standard: Controlled at 45℃
- Optional: Controlled at 60℃
#### Sample Pressure
Up to 1.3bar
#### Analog Output
4 ~ 20mA (isolated signal), maximum load 800Ω, field configurable
#### Alarms
- 4 SPDT relays, 28VDC, 2A
- 1 fault alarm relay, 28VDC, 2A
#### Power Supply
85 ~ 264VAC, 47 ~ 63Hz
#### Ambient Temperature Range
-20 ~ 35℃; standard cell operating temperature: 45℃
#### Pressure Range
0.6 ~ 1.3 bar
#### External Characteristics
##### Wetted Probe Materials
Standard: 316 stainless steel, glass and Viton™ O-rings
##### Enclosure / Explosion-proof Rating
- Ingress Protection: NEMA 4X, IP66
- Explosion-proof Rating: Class I, Div.1, Group B, C, D, EEx d IIC T6
# Product Applications
## Application Industries
The APX Paramagnetic Oxygen Analyzer is applicable to the following industries:
- Gas recovery
- Tanker loading and unloading
- Flare gas
- Refinery gas
- Olefin gases such as ethylene and propylene
- Pure hydrocarbon gases
