**Product Introduction**

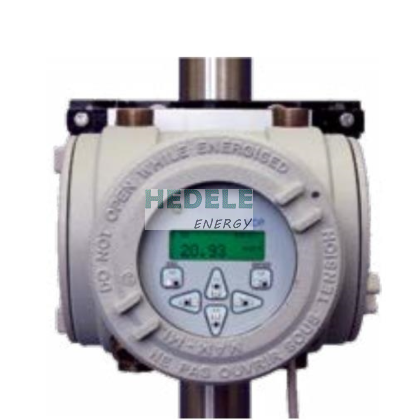

**The XDP American GE explosion-proof oxygen sensor display can measure the percentage or ppm of oxygen or hydrogen gas. This explosion-proof XDP has been certified and can be used in Class 1, Zone 1, Groups B, C, and D, as well as ATEX/IECEX Ex d IIC T6 Gb hazardous areas. XDP features cutting-edge microprocessor based electronic components, magnetic glass keyboard, universal power supply (magnetic), a 0/4 to 20 mA or 0 to 2 VDC analog output, four process alarms, and one fault alarm.**
**Product Parameters**
**GE Explosion proof Oxygen Sensor Display from the United States**
**Features:**
**Explosion proof devices suitable for Class I, Zone 1, Groups B, C, and D hazardous areas, Nema4X**
**Explosion proof rating ATEX II 2 G Ex d IIC T6 Gb, compliant with IECEX Ex d IIC T6 Gb IP66 standard**
**Glass magnetic perforated keyboard**
**Universal communication input, optional 24VDC input**
**24 VDC power supply for XMO2, XMTC, or OXY. IQ**
**Software for measuring the percentage or ppm of oxygen or hydrogen**
**Hydrogen cooled generator three curve software**
**• Programmable process relay contacts**
**GE Explosion proof Oxygen Sensor Display from the United States**
**Main technical parameters:**
**Measuring range:**
**• 0 to 10; 100； 1,000； or10,000ppm O2**
**• 0% to 1%; 10%； 21%； 25%； or100%O2**
**relay:**
**Four process alarms**
**• 1 fault alarm**
**Two automatic calibration contacts**
**Two calibration alarms**
**Hydrogen cooled generator:**
**Three scopes**
**• 0% to 100% H2 in air**
**0% to 100% H2in CO2**
**CO2 contains 0% to 100% air**
**Repeater:**
**Two types of process alarms**
**• 1 fault alarm**
**• A regular alarm**
**Size:**
**9 inches x 10 inches x 9 inches (229mm x 254mm x 229mm)**
**Weight:**
**15 lb (6.8 kg)**
**Protection level:**
**• IP66。 FM/CSA Class I, Zone 1, Groups B, C, and D**
**Explosion proof: KEMA 01ATEX2128 II 2 GD EEx d IIC T6 T85 ° C**
**Product Application**
**Application fields:**
**XMO2 thermal magnetic oxygen sensor**
**XMTC Thermal Conductivity Hydrogen/Gas Transmitter**
**OXY.IQ electrochemical oxygen transmitter**
**• Any other 4 to 20 mA output transmitter**
