ARCA controller

Xi'an Haililai Electromechanical Equipment Co., Ltd. supplies a full range of German ARCA products including ARCA controllers, pneumatic actuators, positioners, pressure reducing valves and control valves.


Xi'an Haililai Electromechanical Equipment Co., Ltd. supplies a full range of German ARCA products including ARCA controllers, pneumatic actuators, positioners, pressure reducing valves and control valves.

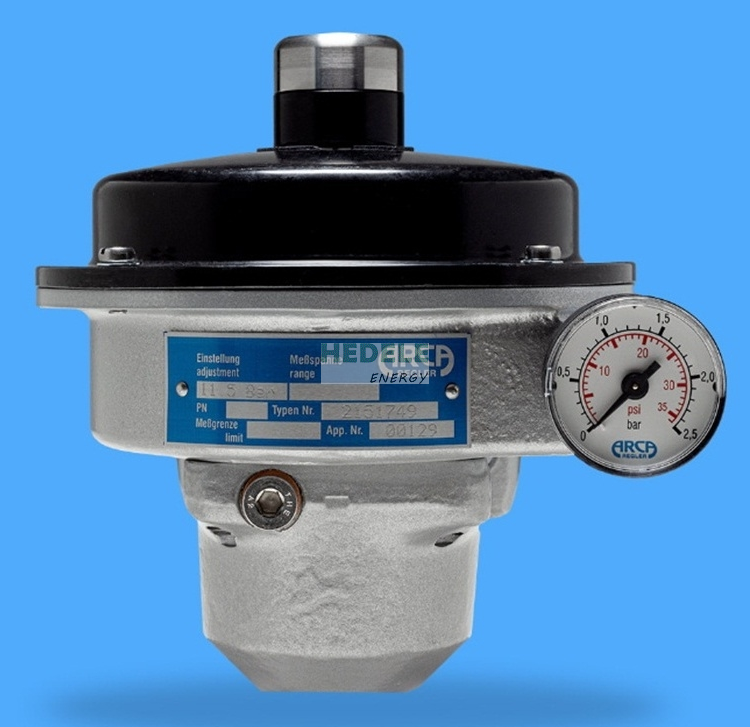

The pressure to be regulated by the ARCA pressure controller generates force via bellows or diaphragms. This force is compared with the force of an adjustable spring through the measuring system, and a driving pressure is produced by the nozzle/flapper system. Feedback from the operating rod stabilizes the controller. Model 902 pressure controllers are applicable to steam and hydraulic pressure regulation, and also serve as gas pressure controllers in processing plants.


The ARCA temperature controller is installed at the measuring point, and generates actuation pressure for the actuator via extension rods and the nozzle/flapper system. The calibrated proportional band allows setpoint adjustment. Pneumatic valve actuators can also be installed far away from the measuring points. Among other applications, Model 910 temperature controllers are used to regulate the temperature of coolant in central coolant circuits.


8C/6N/6H Series
DN 15–100 / 1/2"-4'' / DN 125-800 / 5"-32" / DN 15-450 / 1/2"-18"
PN 16-63 / PN 16-63 / PN 100-250
ANSI Class 150-600 / ANSI Class 150-600 / ANSI Class 900-1500
Temperature range: -196 °C to 650 °C


The ECOTROL control valve is a versatile device widely used in numerous processes and industries. This modular system consists of valve bodies, body seals, internal components, valve seats, stem seals, valve actuators and positioners, delivering customized and optimal control solutions for your processes. The ECOTROL series systems can regulate media such as steam, gas and oil, featuring universal adaptability.


Temperature range: -40 °C to 80 °C
Control signal: max. 6 bar
Actuating force: up to 149 kN
Effective area: 56 – 2,825 cm²
Rated travel: up to 250 mm


Featuring robust rolling diaphragms, ARCA pneumatic diaphragm actuators boast a compact structure and wide application range, ensuring zero hysteresis throughout the full stroke. The pneumatic actuator can be opened or closed by spring force or control air. Its fail-open and fail-close configurations can be converted on-site to enhance flexibility for field operation. The built-in spring enables the actuator to return to its fail-safe position. These actuators deliver extremely short stroke times, so ARCA diaphragm actuators not only fulfill control functions but also play a vital role in production safety. Generally, these pneumatic actuators require no explosion-proof design, and an emergency handwheel can be fitted if necessary.
