Product Introduction

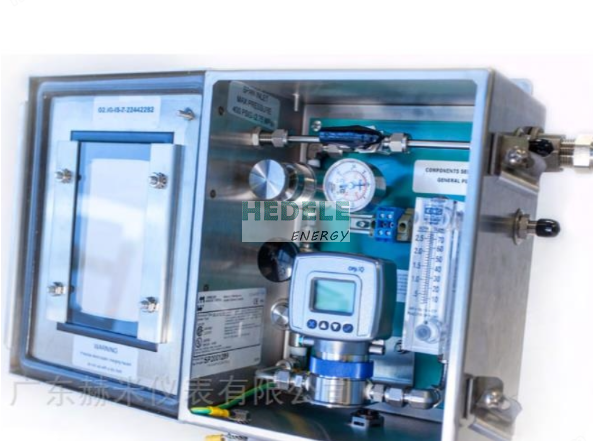

The explosion-proof oxygen analyzer system provides reliable oxygen detection solutions for various application scenarios by simplifying the operation process and standardizing the configuration. The core component of this device is the oxy.IQ analyzer, paired with a carefully designed sample processing system to ensure convenient operation and stable functionality in a compact housing. Simply install O2.IQ in place and connect two interfaces to complete on-site calibration.
Product Parameters
Explosion proof oxygen analyzer system
Its core highlights include:
Wall mounted NEMA 4X and IP66 stainless steel packaging
Characteristics of Oxygen IQ Electrochemical Analyzer
The packaging design is easy to access, including accessible sensor battery replacement
The sample processing system provides isolation, filtration, pressure regulation, flow and pressure indication, as well as a transparent window for easy viewing of all readings.
Explosion proof oxygen analyzer system
Application parameters
• Gas pressure range: 0-400 PSI (0-27.5 bar)
Gas sample temperature: 32 to 113 ° F (0 to 45 ° C)
Power requirements: 24 to 28 VDC, 50 mA
O2.IQ Quality Standards
All devices
precision
± 1% range of calibration point
± 2% of the range of calibration points within the range of 0 to 10 ppmv (limited to OX-1 or OX-2)
repetitiveness
± 1% of the range
2% within the range of ± 0 to 10 ppmv (only OX-1 and OX-2)
precision
Range of ± 0.1%
linear
± 2% of the range (OX-1, 2, 3, 5)
± 5% of the range (OX-4)
O2Sensor operating temperature
32 to 113 º F (0 to 45 º C)
Sample pressure
The inlet pressure is 400 PSI (27.5 bar) and is discharged into the atmosphere
Atmospheric pressure effect
The reading per mmHg is 0.13% (proportional to the juedui pressure). During the calibration process, it is necessary to maintain constant pressure and flow rate.
Process connection
1/4 inch/6mm compression pipe joint inlet and outlet
size
10.0 x 8.0 x 5.32 inches (273.1 x 203.2 x 135 millimeters)
weight
5.0 lb (6.8 kg)
Sample flow rate
1.0 Recommended use of SCFH (500 cc/min) for process equipment
Electrical classification certification
intrinsic safety
• United States/Canada
• IS， Applicable to Class A, B, C, D, T4
• AEx ia IIC T4
ATEX and IECEx
Ex Ia IIC Ga T4 Tamb -20 to 60 º CIS protection device, without self ignition protection function, unless using a Zener barrier or electrical isolation
Departure device:
• United States/Canada: Category 1, Zone 2,
